¶ Remote Mode

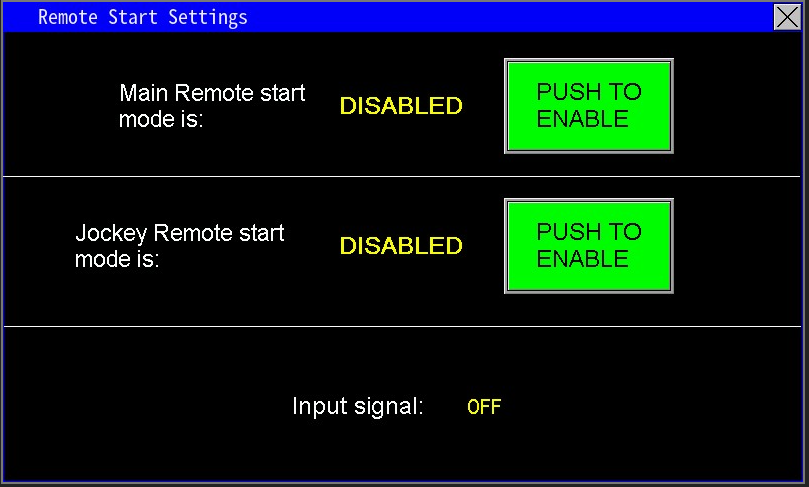

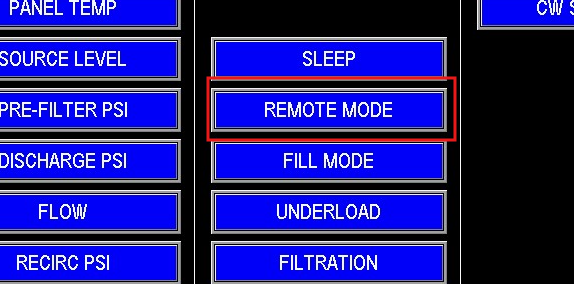

Remote Mode (Image 1.1) allows an external controller or system to start and stop the pump station, overriding the panel automation and scheduler. When Remote Mode is enabled, pumps will not run until the external remote enable signal is received, regardless of the panel’s current status.
¶ Enable/Disable
Available remote‑enable options depend on station configuration. When a pump’s remote enable is active, that pump will remain off until a valid external remote signal is received. If only the jockey pump is configured for remote enable, the mains will continue to operate under local automation while the jockey waits for the remote signal before starting (image 1.2).
