¶ Motor CT

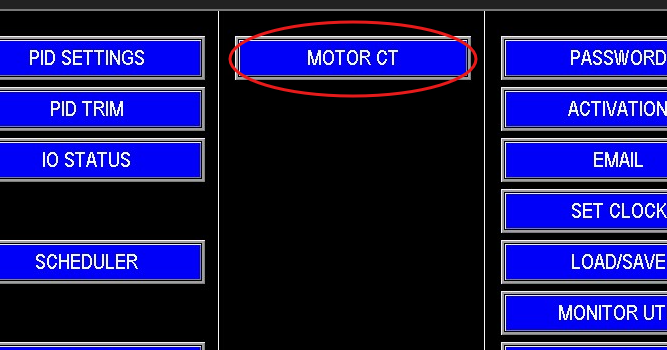

The Motor CT monitors the motor or VFD current draw during pump operation, providing real‑time amperage data for monitoring, fault detection, and performance analysis. (image 1.1).
¶ CT Settings

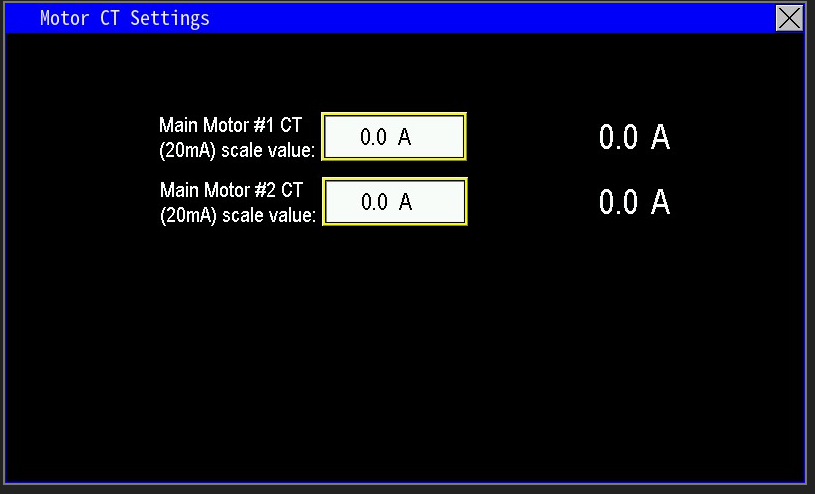

Use this screen to monitor attached current transformers (CTs) and configure their 20 mA scaling. Enter each CT’s full‑scale amperage into the 20 mA scale field (Image 1.2). The right‑hand readout displays the real‑time amperage computed from the CT signal for monitoring and diagnostics.
